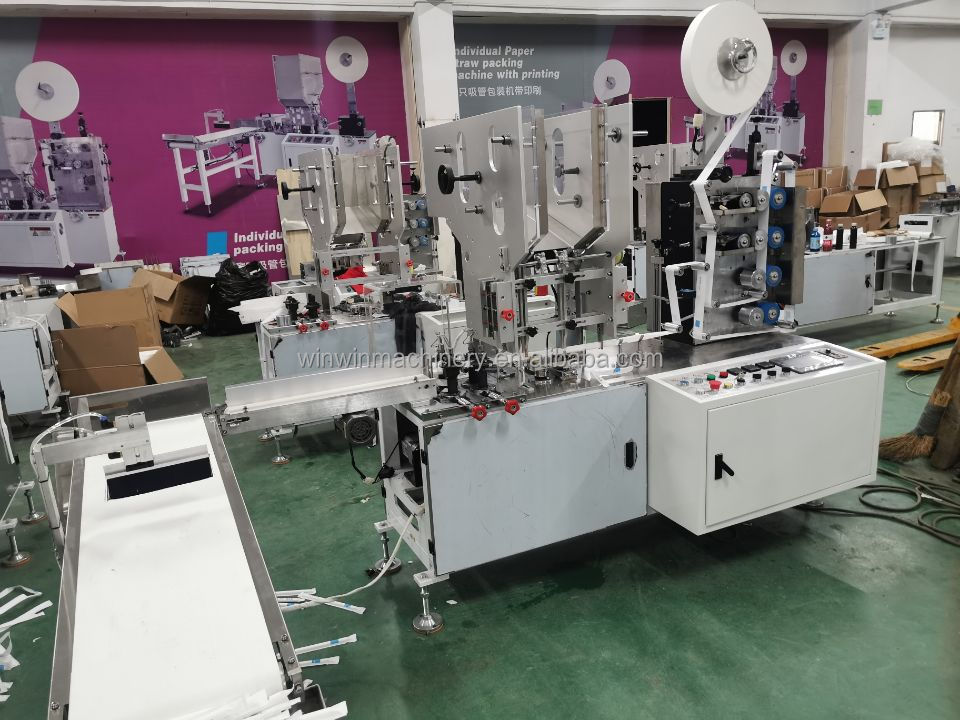

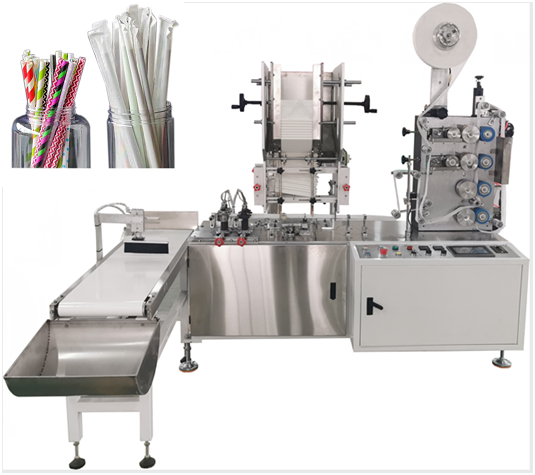

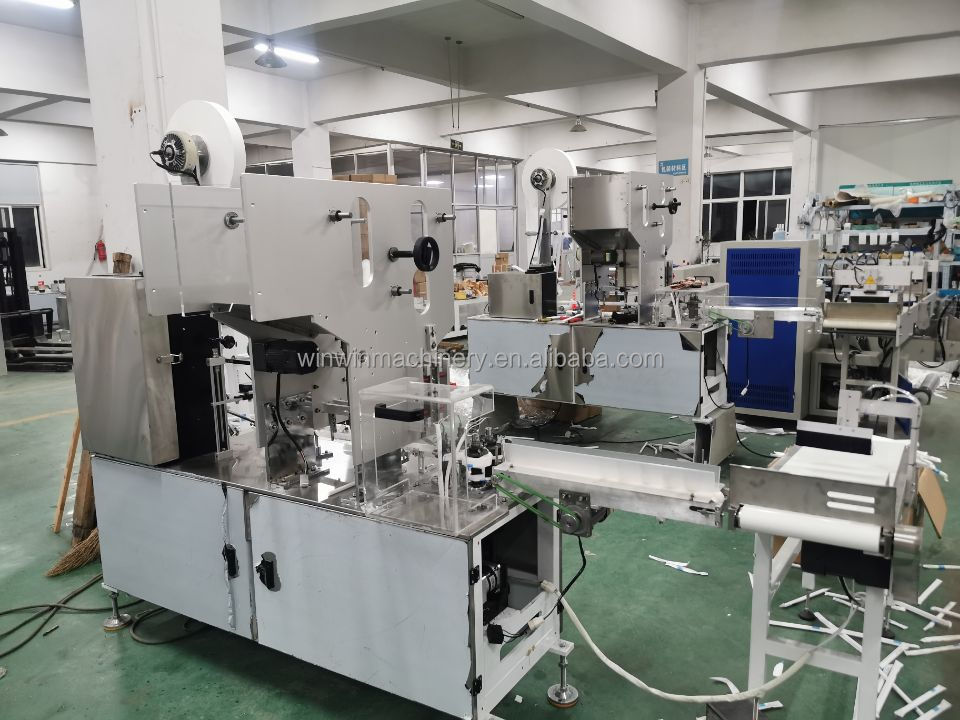

Paper straw wheat straw single individually wrapping packing machine

Category: Paper straw packing machine
E_mail: yolanda@chinatrustful.com
Tel: +86-577-65888973
Whatsapp: 86-18767709188

Share to:

Tel: 86-577-65888973 E_mail:yolanda@chinatrustful.com

Feature:
1) Automatic and high speed, 400-600 pcs /min;
2) touch screen control, 5 sets of servo motor.
3) Big range of packing ability, without change parts, straw outer diameter: 5-12mm, length: 150-260mm ;
4) with two color printing online
5) With automatic product counting function, product quantity may be pre-set, once the pre-set value is reached. the machine will

give an alarm. And the dam-brush will separate each set quantity packaged straw.

Advantage of this new improved packing machine

Compare with standard packing in the market, this new improved packing machine with 5 sets of servo motor , which has more function andconvenient.
1. Can pack straw outer diameter: 5-12mm without changing any mold
2. Can pack straw length: 150-260mm without changing any mold
3. Can print two color on packaging, when change straw length, no need to change rollers and gears, save money and time.
4. With 5 sets of servo motor and driver to control (for cutting wheels, sealing wheels, traction rollers, printing rollers). with touch screen and PLC to control. It is more convenient for adjusting and operation. Save worker's time when change straw length and diameter.

Specification

Straw Specification	Standard length: 150-260mm Standard Diameter: 5-12mm Packing length: 210-315mm
Packing Model	Paper type: wrap paper Sealing type: 3 side sealing Paper width: 28-50mm
Production Speed	With printing：max. 400pcs/min Without printing: max. 600pcs/min
Servo Driving motor	Traction: 1set Cutting rollers: 1set Sealing rollers: 1 set Printing part: 2 sets
Paper Unwinding Frame	Tension adjust：Analog automatic tension control Wrap paper roller core size：3inch，4.7inch
Straw feeding hopper	Material :Stainless steel frame， Plexiglass: Adjustable to match straw length Straw feeding device：induction and swing arm Feeding model：Cam drives the rubber roller to clamp the material
Printing Unit	Single/Double Color Driving by servo motor *2 Traction unit：1sets, rubber roller and chrome plated roller Printing unit：Ink container, anilox roller, doctor blade, printing cylinder, rubber roller Dry unit：1SET , by hot air, with temperature color register：By manual
Sealing and Cutting Parts	Lengthways sealing：Sealing roller-1 couple，pressure adjusted by manual Horizontal：Sealing roller- 1 couple，pressure adjusted by manual, with cutting knife-one couple Material：mould steel
Conveyor Belt	1set， Synchronous reduction motor+ controller Counter dam-brush: one set, lifting by pneumatic cylinder
Controller	Counter：1set，HUALI Brand Controlling inverter: 1.1KW Schneider Temperature controller：1set，KEQIANG Brand Electric parts: Schneider
Total Power (Kw)	5kw
Power suply	220V/single phase
Over size (mm)	1900×1000×1600 (L×W×H)
Weight (Kg)	400

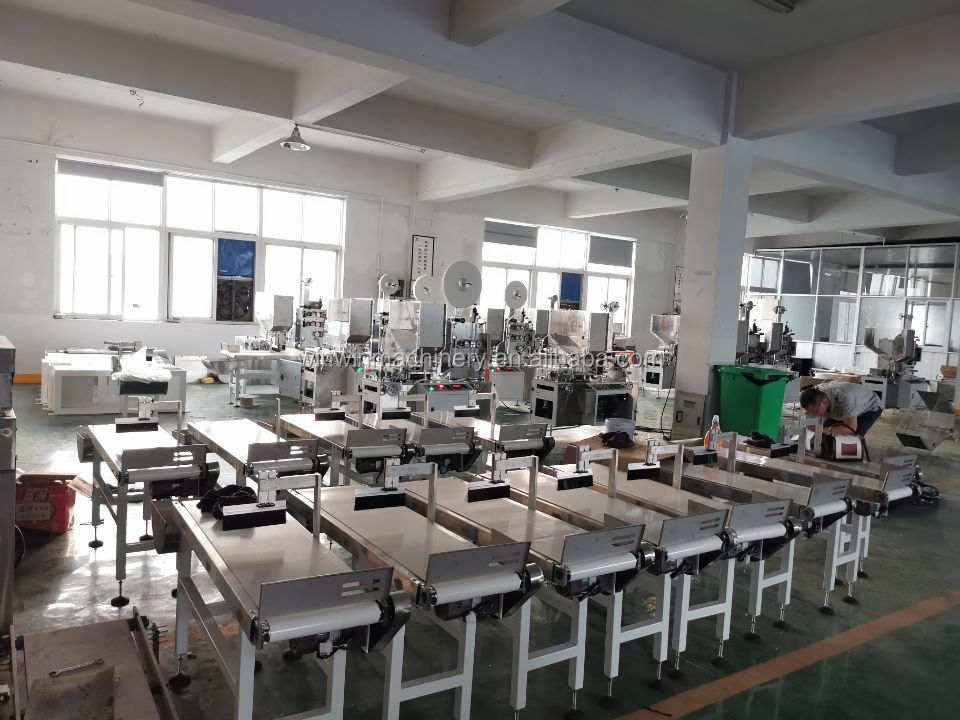

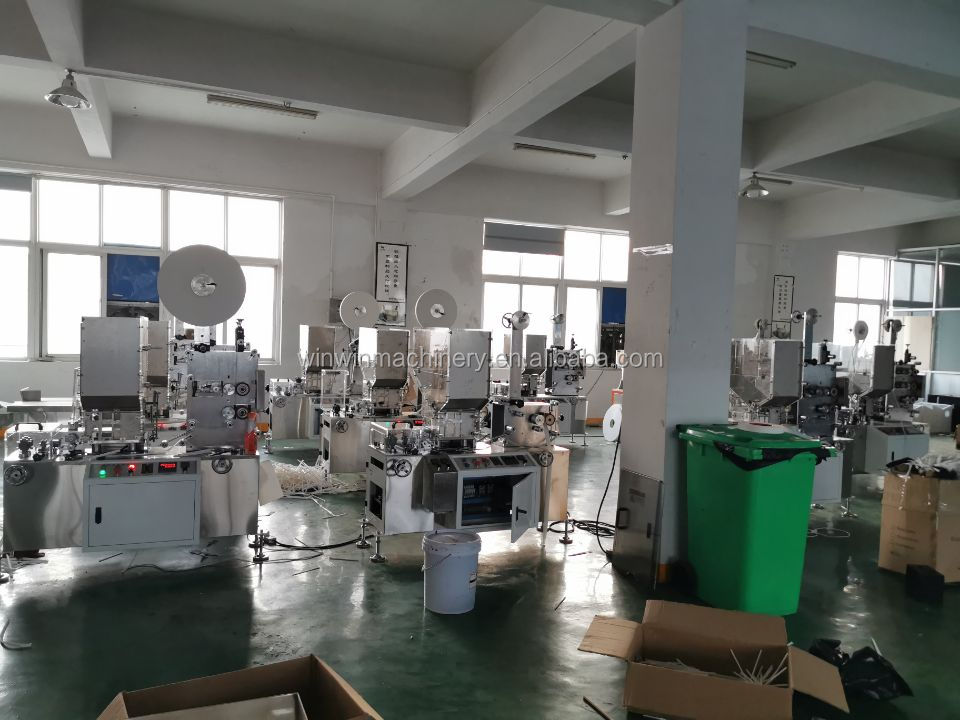

Company Profile

								We are manufacturer and exporter for paper straw machines, we offer one-stop service. Including paper strawing making machine, paper printing machine, paper slitting machine and paper straw packing machine.
Through years of its development, we has expanded our business into
more than 10 countries,  we have technology team to offer online or overseas service.
