Paper straw packing machine
Automatic individual single paper drinking straw wrapping packing machine
Use:
The packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.
1) Having two colors printing device can be chosen
2) with automatic product counting function, product quantity may pre-set, once the pre-set value is reached. the machine will give an alarm.
3) Printing, feeding, and packing can complete in one processing.
4) Packing straw length is adjustable within a certain range.
Specification
| Model no. | YY-SP02 |
| Suitable straw outer diameter | 5-12mm |
| Straw Length(mm) |
Machine with one mould to produce straw length 197-240mm(±20) If need more longer, need to order the sealing and cutting mould |
| Packing Model |
Paper type: wrap paper Sealing type: 3 side sealing |
| Real production speed |
With printing:250pcs/min Without printing:300-400pcs/min |
| Printing color | Single/Double Colour |
| Driving motor | 1.1kw,with inverter controlled |

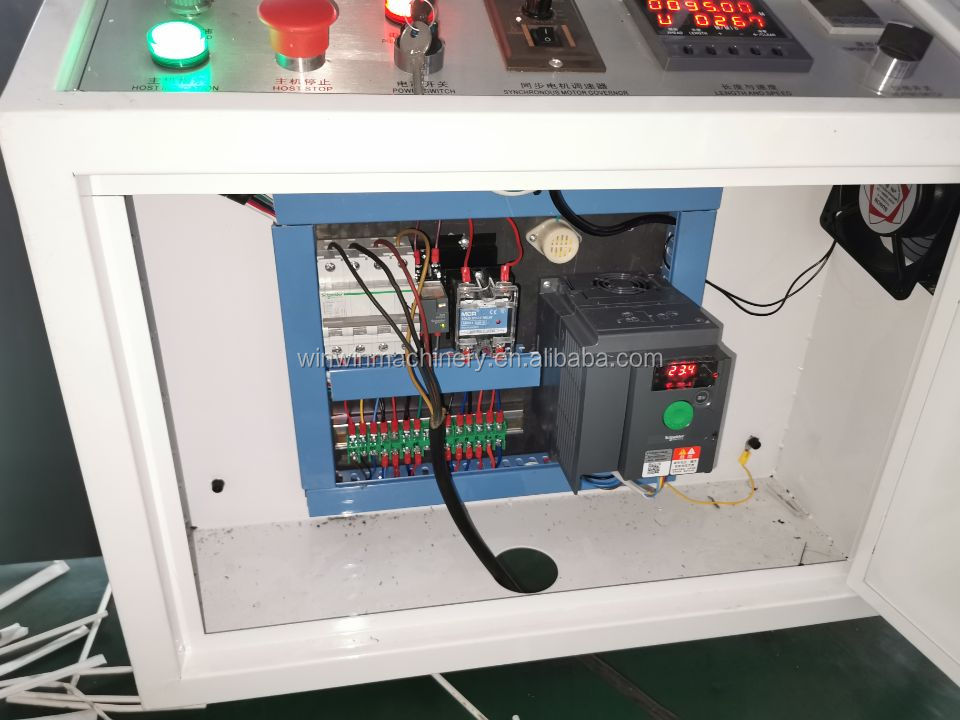

| Controller |
Counter and buzzers:1set Inverter: 1.1KW, Schneider Temperature controller:1set Speed meter:1set |
| Total Power (Kw) | 1.5kw, 220V |
| Over size (mm) | 1900×1000×1600 (L×W×H) |
| Machine weight | 380KGS |

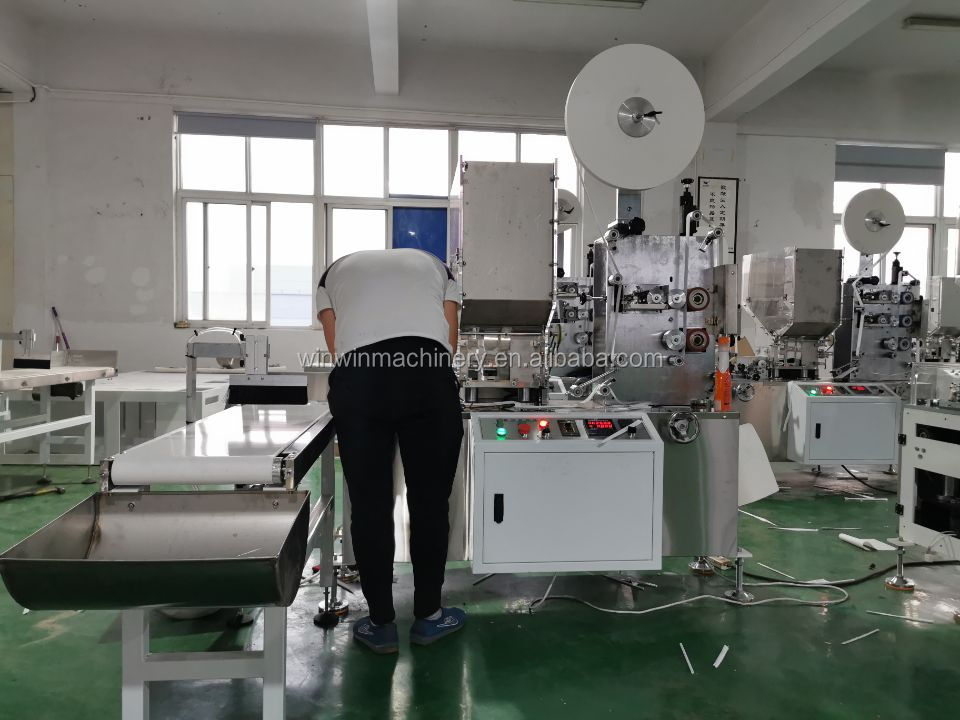

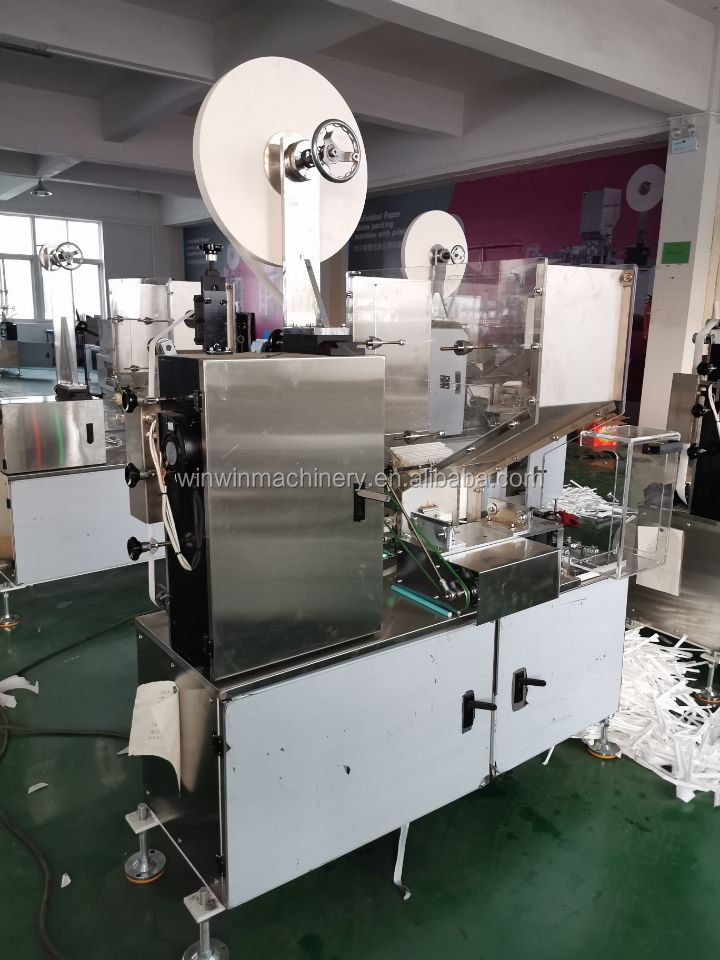

Machine details
We have two type of sealing
A. Packed by paper
B. packed by paper,pe coated paper, film

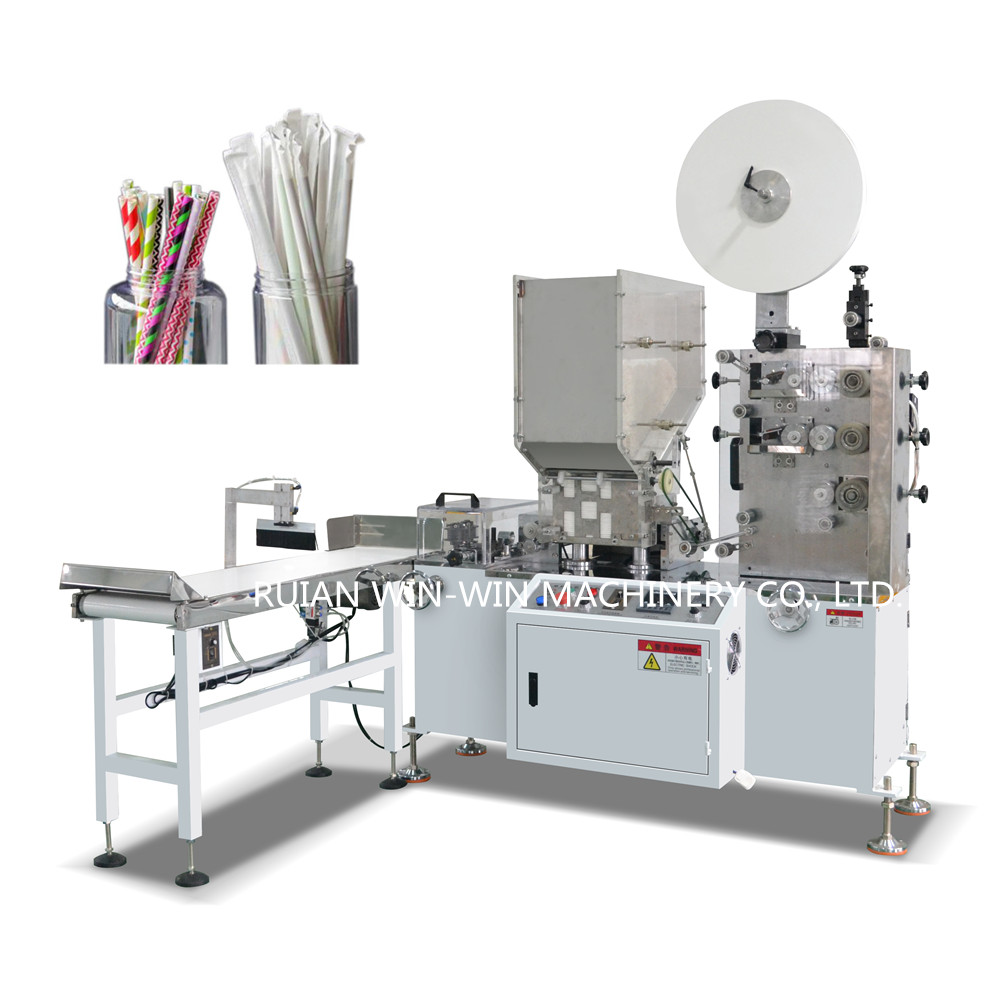

Automatic individual single paper drinking straw wrapping packing machine

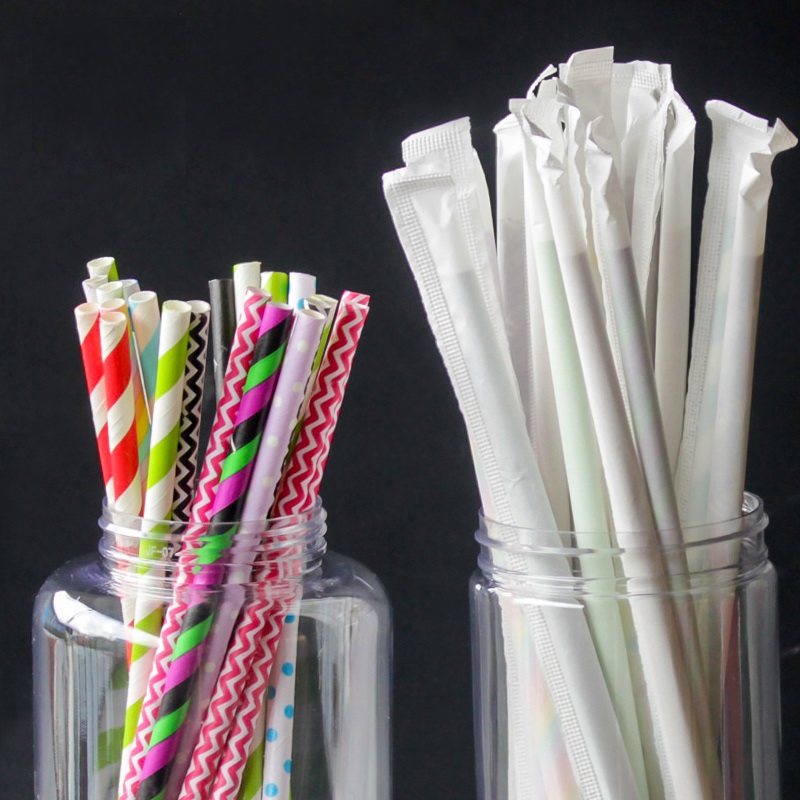

Sample of the finished product
